Integrate BotPenguin with Recurly CRM

This page contains the stepwise tutorial for the integration with BotPenguin

Step 1 of 5: Login to BotPenguin Account and Select Application to Integrate

a. Login to your BotPenguin account. Now, select and click the Bot you want to integrate

with Recurly CRM. Click on the ‘Integrate tab.’

b. The Integrate Window Will Open up. Select the ‘All Integrations’ Tab.

c. A list of all native integrations for BotPenguin will be available in this window.

d. Now find Recurly CRM by:-

  • Either by scrolling down the list or,

  • by typing ‘Recurly CRM’ in the Search Box with the placeholder “Search Integration By Name”

e. Now Click On The ‘Connect’ Button As Shown

f. An Interface, as shown below, will open up. Here, you will be asked to enter the APi key

that you will get by logging into your Recurly CRM account.

Step 2 of 5: Find your Authorization Key/Token in App Account

a. To get the API key, login to the Recurly CRM admin or developer account and on

Recurly dashboard, navigate to Integrations > API Credentials.

b. Click on API Credential to get your Private APi Key. Copy Recurly CRM APi key.

Step 3 of 5: Enter Authorization Details and establish connection with your App

a. Enter Recurly CRM APi key and click the ‘Connect’ Button to complete integration of

BotPenguin with Recurly CRM.

b. If you have entered all the details correctly, you will see a notification that says,

Integrated Successfully.”

Step 4 of 5: Set up Mapping Parameters

a. Now, as connection of the BotPenguin and LiveAgent is established, you need

to map parameters (fields) of LiveAgent CRM to the user response of the BotPenguin question.

You can use the +Add Parameters button to add more fields.

For example, you select a question from All bot questions/components: Please provide your name?

Then, you map it with the parameter -Name

As a result, this mapping will enable integration to send the user's response from

BotPenguin to the Recurly’s Name field in the leads. Similarly, in order for integration to work properly, you will require to map all other questions/ components of your Bot to Recurly CRM fields.

Please note that these queries/questions options will be auto fetched from your bot chat flow, So, make sure you configure your chat flow first.

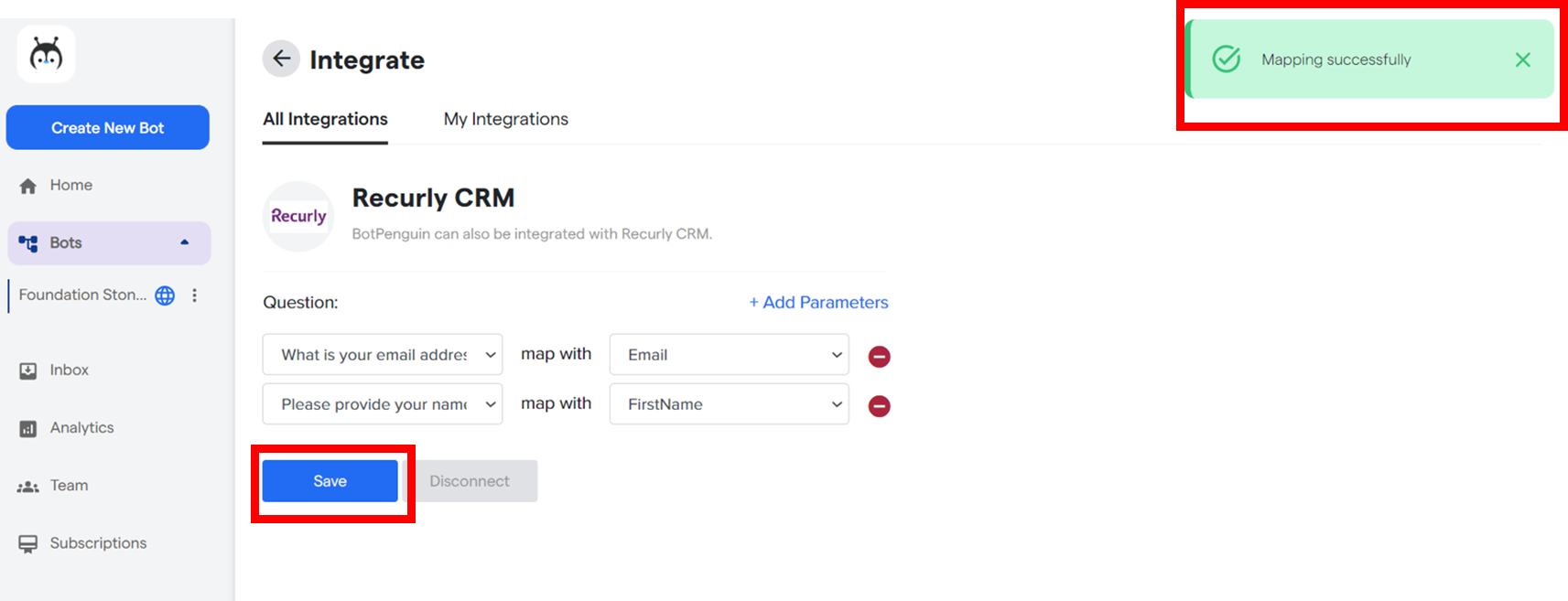

b. If you have entered all the details correctly, you will see a notification that says,

Mapping successfully.

c. Also, your Recurly CRM integration will show the message Installed in the Integration

List.

Step 5 of 5: Test your Integration Set up with Data

Once you have established a connection between BotPenguin and Recurly CRM, and the mapping is complete, you are ready to go for your first test lead. You can test your integration setup by creating a dummy lead on the bot. This lead should appear in your BotPenguin dashboard as well as in the Recurly CRM that you have integrated.

Still Not Working, Let’s Troubleshoot!

If you are not getting dummy lead from your Bot to Recurly CRM, it may be due to the multiple reasons:

  • Wrong Authorization Details added- You will be required to check and see if all the authorization credentials such as API Token, API key, and/or URL has been entered correctly.

  • Wrong Mapping Set up - Your mapping with BotPenguin Question and CRM parameter is either incorrect or you haven’t added any mandatory parameter.

  • Free plan- You are not subscribed to the paid plan on BotPenguin as integration works only in paid plan.

If everything is correct and you are still unable to move forward, write to us at contact@botpenguin.com. We will respond back within 48 business hours.
